Product name: NRL709FA


Model: 1-Phase 100A


Product catalog: Latching Relay

Complete data download










＞  Small size, 100A switching capability.
＞  Low coil consumption, ultra-low temperature rise.
＞  Low contact resistance.
＞  Strong anti-shock and anti-vibration capability.
＞  Outline size: 66.7x46.4x24mm.
＞  IEC62052-31 UC3 Compliant.



①

 Latching Relay

②

 Part Number

③

 Coil Voltage

④

D= Double Coil; S= Single Coil

⑤

100=100A





◆  Characteristics

 Insulation resistance

1000MΩ (500VDC)

Dielectric

Strength

Between Coil & Contacts

4000VAC 1min
  Between Open Contacts

2000VAC 1min

Operate Time

20msec. Max.

Release Time

20msec. Max.

Shock      resistance

Functional

98m/S2
  Destructive

980m/S2

Vibration resistance

10~55Hz 1.5mm

Humidity

5%-85%RH

Ambient temperature

-40~+85℃

Temination

Fast connection

Unit weight

127g

Constrution

 Dust protected



◆  Contact Data

Contact form

1A/1B

Contact material

AgSnO2

Contact resistance (1A 6VDC)

(Test point within 5mm distance from the casing )

Max: 1.0mΩ

Contact Rating

100A   250VAC

 Max. Switching Current

100A

 Max. Switching Voltage

277VAC

Max. Switching Power

25000VA

Mechanical life

1×105

 Electrical  life ( Resistive)

1×104



◆  Electrical Endurance (@ rated coil voltage)

UC Class

Voltage

(Uc)

Current

(lc)

ON/OFF time

(second)

Power Factor

Electrical Endurance

(ops)
UC3

230VAC

100A

10s on /20s off

 COS ∅ =1

COS∅ =0.5

 5000

5000   (Total:10000)

◆  Coil



Coil power

Single coil: 3.0W  Double coil: 6.0W




◆  Coil Data

Rated Voltage

Pick-up voltage

Pulse Duration

Coil Resistance

 Single coil

6

≤ 4.5

≥ 50

12±10%

9

≤ 6.8

≥ 50

27±10%

12

≤ 9

≥ 50

48±10%

24

≤ 18

≥ 50

192±10%
Double coil

6

≤ 4.5

≥ 50

2×6±10%

9

≤ 6.8

≥ 50

2×13.5±10%

12

≤ 9

≥ 50

2×24±10%

24

≤ 18

≥ 50

2×96±10%

*Note: Special ordering for other coil voltage.

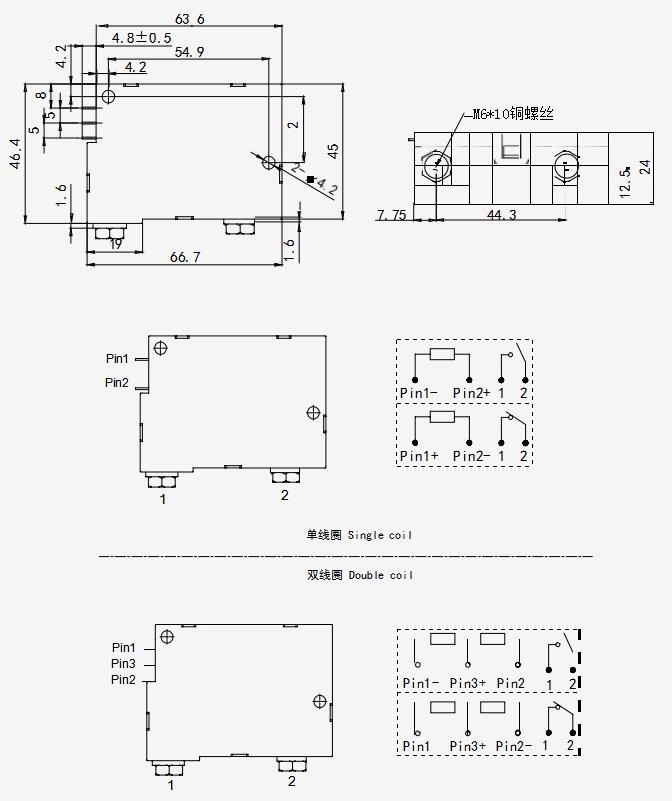

◆  Dimensions(mm)/  Circuit Diagram
