◆ Characteristic
＞ 200A switching capability.
＞ Low coil consumption, ultra-low temperature rise.
＞ Low contact resistance.
＞ Strong anti-shock and anti-vibration capability.
＞ Outline size: 77×73.3 ×29.5mm.
◆ Ordering Information
|
|
① |
Latching Relay |
|
② |
Part Number |
|
|
③ |
Coil Voltage |
|
|
④ |
D= Double Coil; S= Single Coil |
|
|
⑤ |
200=200A |
◆ Characteristics
 Insulation resistance |
1000MΩ (500VDC) | |
| Dielectric Strength | Between Coil & Contacts | 4000VAC 1min |
| Between Open Contacts | 2000VAC 1min | |
| Pole&Pole | 4000VAC 1min | |
| Operate Time | 30msec. Max. | |
| Release Time | 30msec. Max. | |
| Shock resistance | Functional | 98m/S² |
| Destructive | 980m/S² | |
| Vibration resistance | 10~55Hz 1.5mm | |
| Humidity | 5%-85%RH | |
| Ambient temperature | -40~+85℃ | |
| Temination | Fast connection | |
| Unit weight | 320g | |
| Constrution | Dust protected | |
◆ Contact Data
| Contact form | 2A/2B |
| Contact material | AgSnO2 |
| Contact resistance (1A 6VDC)(Test point within 5mm distance from the casing ) | Max: 0.35mΩ |
| Contact Rating | 200A 250VAC |
| Max. Switching Current | 200A |
| Max. Switching Voltage | 277VAC |
| Max. Switching Power | 50000VA |
| Mechanical life | 1×105 |
| Electrical life ( Resistive) | 6×103 |
◆ Coil
| Coil power |
Single coil:12.0W Double coil: 24.0W |
◆ Coil Data
| Rated Voltage | Pick-up voltage | Pulse Duration | Coil Resistance |
| Single coil | |||
| 12 | ≤ 9 | ≥ 100 | 12±10% |
| 24 | ≤ 18 | ≥ 100 | 48±10% |
| 48 | ≤ 36 | ≥ 100 | 192±10% |
| Double coil | |||
| 12 | ≤ 9 | ≥ 100 | 2×6±10% |
| 24 | ≤ 18 | ≥ 100 | 2×24±10% |
| 48 | ≤ 36 | ≥ 100 | 2×96±10% |
Note: Special ordering for other coil voltage.
◆ Typical Application
1)Prepayment Energy Meter; AMR System;
2)Compound Switch; Automatic Control System.

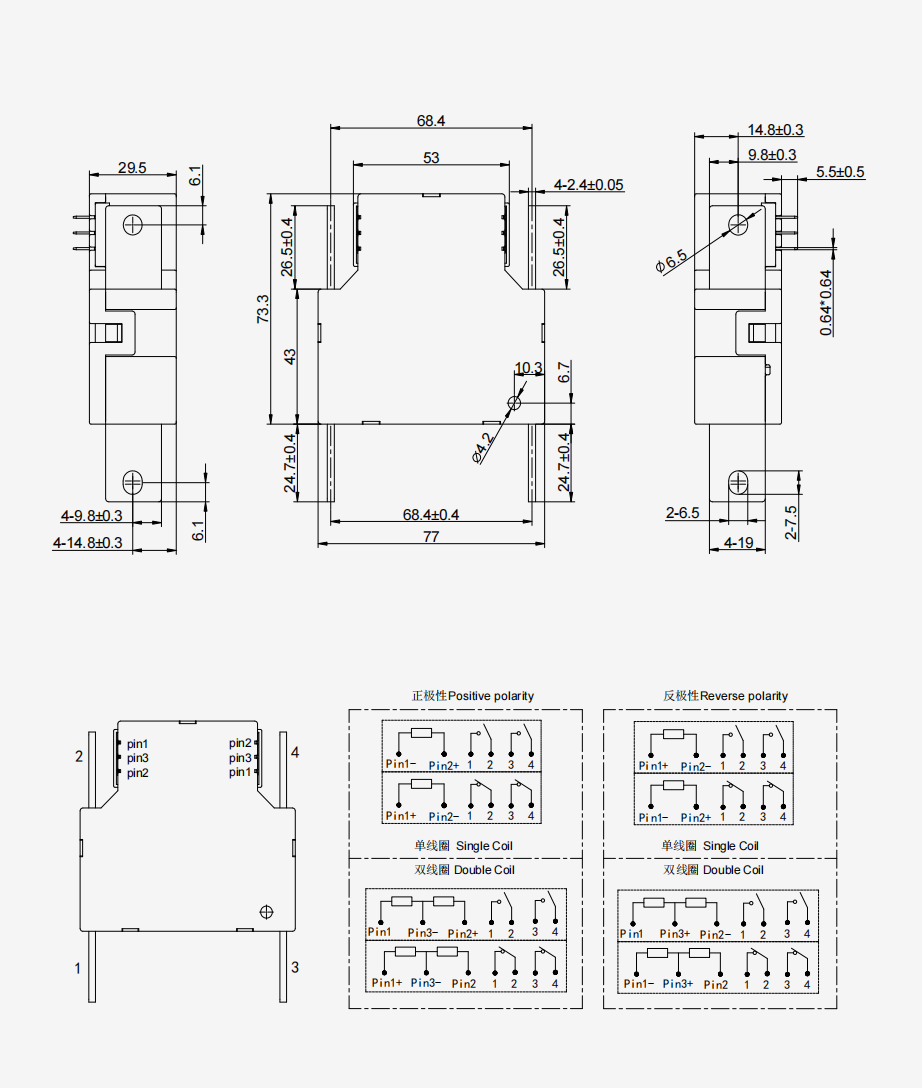

◆Dimensions(mm)/Circuit Diagram
